box2d旋转关节（Revolute Joint）的属性与方法

关节角度当body2围绕铰链点逆时针旋转时为正值

    GetAnchorA():b2Vec2
    GetAnchorB():b2Vec2
    GetJointAngle():Number

关节限制(Joint limit)可以限制旋转的范围：

    IsLimitEnabled():Boolean
    SetLimits(lower:Number, upper:Number):void

关节马达(Joint Motor)可以指定关节的速度

    IsMotorEnabled():Boolean
    SetMaxMotorTorque(torque:Number):void
    SetMotorSpeed(speed:Number):void

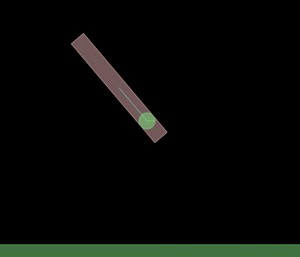

利用关节马达可以使旋转关节具有速度，示例如下：

package{
	import Box2D.Collision.Shapes.b2CircleShape;
	import Box2D.Collision.Shapes.b2PolygonShape;
	import Box2D.Collision.Shapes.b2Shape;
	import Box2D.Collision.b2AABB;
	import Box2D.Common.Math.b2Vec2;
	import Box2D.Dynamics.Joints.b2MouseJoint;
	import Box2D.Dynamics.Joints.b2MouseJointDef;
	import Box2D.Dynamics.Joints.b2RevoluteJoint;
	import Box2D.Dynamics.Joints.b2RevoluteJointDef;
	import Box2D.Dynamics.b2Body;
	import Box2D.Dynamics.b2BodyDef;
	import Box2D.Dynamics.b2DebugDraw;
	import Box2D.Dynamics.b2Fixture;
	import Box2D.Dynamics.b2FixtureDef;
	import Box2D.Dynamics.b2World;

	import flash.display.Sprite;
	import flash.events.Event;
	import flash.events.MouseEvent;

	[SWF(width="800",height="600",frameRate="32",backgroundColor="0x000000")]
	public class RevoluteJoint2 extends Sprite{
		private var world:b2World;
		private var timeStep:Number;
		private var iterations:uint;
		private var pixelsPerMeter:Number = 30;
		private var mouseJoint:b2MouseJoint;
		private var mousePVec:b2Vec2 = new b2Vec2();

		public function RevoluteJoint2(){
			createWorld();
			makeDebugDraw();
			createWall();
			createJoint();
			addEventListener(Event.ENTER_FRAME,onEnterframe);
			stage.addEventListener(MouseEvent.MOUSE_DOWN,onMouseDown);
			stage.addEventListener(MouseEvent.MOUSE_UP,onMouseUp);
		}

		private function createWorld():void{
			var gravity:b2Vec2 = new b2Vec2(0.0,9.8);
			var doSleep:Boolean = true;
			world = new b2World(gravity,doSleep);
			world.SetWarmStarting(true);
			timeStep = 1.0/30.0;
			iterations = 10;
		}

		private function createWall():void{
			var bodyDef:b2BodyDef = new b2BodyDef();
			// Body的中心点
			bodyDef.position.Set(400/pixelsPerMeter,585/pixelsPerMeter);
			var body:b2Body = world.CreateBody(bodyDef);
			var shape:b2PolygonShape = new b2PolygonShape();
			// 几何体的半宽和半高
			shape.SetAsBox(400/pixelsPerMeter,15/pixelsPerMeter);
			body.CreateFixture2(shape);
		}

		private function createJoint():void{
			var bodyDef:b2BodyDef = new b2BodyDef();
			//bodyDef.type = b2Body.b2_dynamicBody;
			bodyDef.position.Set(400/pixelsPerMeter,275/pixelsPerMeter);
			var circleShape:b2CircleShape = new b2CircleShape();
			circleShape.SetRadius(15/pixelsPerMeter);
			var fixtureDef:b2FixtureDef = new b2FixtureDef();
			fixtureDef.shape = circleShape;
			fixtureDef.density = 0.01;
			fixtureDef.friction = 1;
			fixtureDef.restitution = 0.1;
			var pivot:b2Body = world.CreateBody(bodyDef);
			pivot.CreateFixture(fixtureDef);

			bodyDef = new b2BodyDef();
			bodyDef.type = b2Body.b2_dynamicBody;
			bodyDef.position.Set(320/pixelsPerMeter,275/pixelsPerMeter);
			var boxShape:b2PolygonShape = new b2PolygonShape();
			boxShape.SetAsBox(120/pixelsPerMeter,15/pixelsPerMeter);
			fixtureDef.shape = boxShape;
			var box:b2Body = world.CreateBody(bodyDef);
			box.CreateFixture(fixtureDef);

			var jointDef:b2RevoluteJointDef = new b2RevoluteJointDef();
			jointDef.Initialize(pivot,box,pivot.GetWorldCenter());
			var joint:b2RevoluteJoint = world.CreateJoint(jointDef) as b2RevoluteJoint;
			joint.EnableMotor(true);
			joint.SetMotorSpeed(2);
			joint.SetMaxMotorTorque(10);
		}

		private function makeDebugDraw():void{
			var debugDraw:b2DebugDraw = new b2DebugDraw();
			var debugSprite:Sprite = new Sprite();
			addChild(debugSprite);
			debugDraw.SetSprite(debugSprite);
			debugDraw.SetDrawScale(30.0);
			debugDraw.SetFillAlpha(0.5);
			debugDraw.SetLineThickness(1.0);
			debugDraw.SetFlags(b2DebugDraw.e_shapeBit | b2DebugDraw.e_jointBit);
			world.SetDebugDraw(debugDraw);
		}

		private function onMouseDown(e:MouseEvent):void{
			var body:b2Body = getBodyAtMouse();
			if(body){
				var mouseJointDef:b2MouseJointDef = new b2MouseJointDef();
				mouseJointDef.bodyA = world.GetGroundBody();
				mouseJointDef.bodyB = body;
				mouseJointDef.target.Set(mouseX/pixelsPerMeter,mouseY/pixelsPerMeter);
				mouseJointDef.maxForce = 30000;
				mouseJoint = world.CreateJoint(mouseJointDef) as b2MouseJoint;
			}
		}

		private function onMouseUp(e:MouseEvent):void{
			if(mouseJoint){
				world.DestroyJoint(mouseJoint);
				mouseJoint = null;
			}
		}

		private function getBodyAtMouse(includeStatic:Boolean = false):b2Body{
			var mouseXWorldPhys:Number = mouseX/pixelsPerMeter;
			var mouseYWorldPhys:Number = mouseY/pixelsPerMeter;
			mousePVec.Set(mouseXWorldPhys,mouseYWorldPhys);
			var aabb:b2AABB = new b2AABB();
			aabb.lowerBound.Set(mouseXWorldPhys-0.001,mouseYWorldPhys-0.001);
			aabb.upperBound.Set(mouseXWorldPhys+0.001,mouseYWorldPhys+0.001);
			var body:b2Body = null;
			var fixture:b2Fixture;
			function GetBodyCallBack(fixture:b2Fixture):Boolean{
				var shape:b2Shape = fixture.GetShape();
				if(fixture.GetBody().GetType() != b2Body.b2_staticBody || includeStatic){
					var inside:Boolean = shape.TestPoint(fixture.GetBody().GetTransform(),mousePVec);
					if(inside){
						body = fixture.GetBody();
						return false;
					}
				}
				return true;
			}
			world.QueryAABB(GetBodyCallBack,aabb);
			return body;
		}

		private function onEnterframe(e:Event):void{
			world.Step(timeStep,iterations,iterations);
			world.ClearForces();
			world.DrawDebugData();
			if(mouseJoint){
				var xpos:Number = mouseX/pixelsPerMeter;
				var ypos:Number = mouseY/pixelsPerMeter;
				var v2:b2Vec2 = new b2Vec2(xpos,ypos);
				mouseJoint.SetTarget(v2);
			}
		}
	}
}
